Git Branches and Worktrees in VS Code

Git branches enable you to work on different features or experiments simultaneously without affecting your main codebase. VS Code provides tools for branch management, Git worktrees for parallel development, and stash management for temporary changes.

This article covers working with branches, worktrees, and stashes in VS Code to manage parallel development work.

Working with branches

Branches are lightweight, movable pointers to specific commits in your Git history. They allow you to diverge from the main line of development and work on features independently.

For example, suppose you're working on a web application and need to add user authentication while also fixing a bug in the payment system. You can create two branches:

• feature/user-authentication - contains your login and signup functionality
• bugfix/payment-validation - contains fixes for payment processing errors

Each branch maintains its own set of changes without affecting the other. You can switch between branches to work on different tasks, and later merge the completed branches back into your main branch.

View current branch

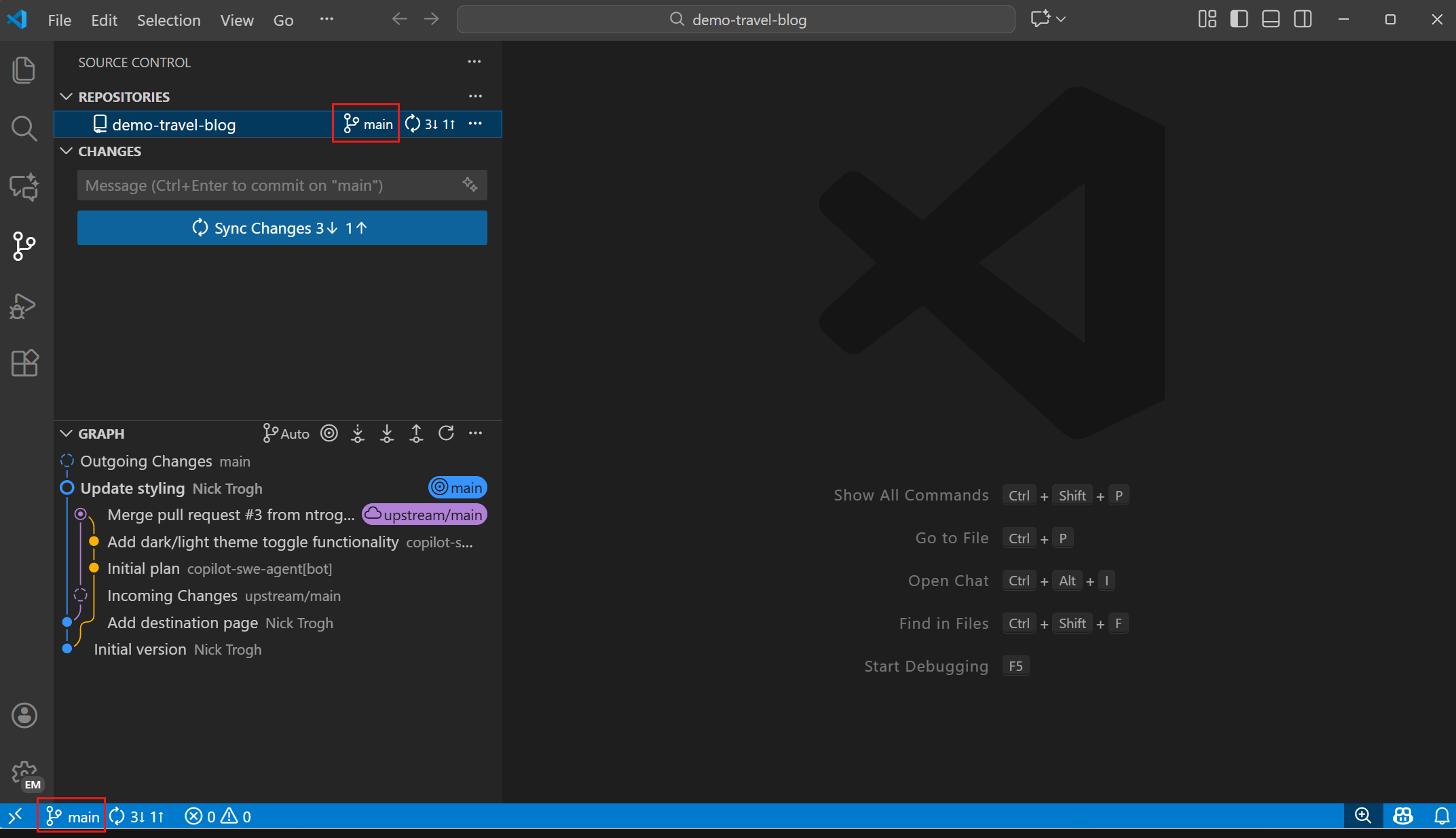

The current branch appears in several places in VS Code:

• Status Bar: shows the current branch name and allows quick branch switching
• Repositories view: displays the current branch in the repository header
• Source Control Graph: visually represents branch relationships and history

Switch between branches

Switching to a different branch is called "checking out" a branch in Git terminology. When you check out a branch, Git updates your working directory to match that branch's state.

To switch to a different branch:

1. Select the branch name in the Status Bar, or run the Git: Checkout to command from the Command Palette (⇧⌘P (Windows, Linux Ctrl+Shift+P)).

2. Choose from the list of available branches:

   • Local branches: Branches that exist on your local machine
   • Remote branches: Branches from the remote repository that you can check out locally
   • Recent branches: Recently used branches

Create new branches

Create a new branch to start working on a feature or experiment:

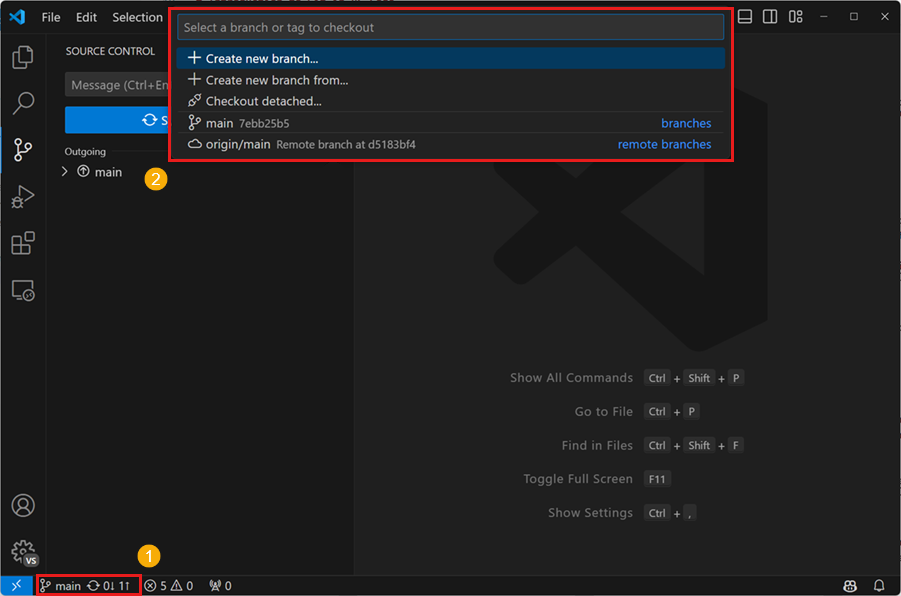

1. Select the branch name in the Status Bar or run Git: Create Branch from the Command Palette.

2. Enter a name for your new branch. Use descriptive names like feature/user-authentication or bugfix/login-error.

   Tip

   VS Code can generate random branch names for you. Configure this with the git.branchRandomName.enable and git.branchRandomName.dictionary settings.

3. Choose the source branch (usually main or develop) from which to create the new branch.

VS Code switches to the new branch after creation.

Rename and delete branches

To rename the current branch:

1. Run Git: Rename Branch from the Command Palette or select it from the More Actions (...) menu.
2. Enter the new branch name.

To delete a branch:

1. Switch to a different branch (you can't delete the currently active branch).
2. Run Git: Delete Branch from the Command Palette or select it from the More Actions (...) menu.
3. Select the branch to delete from the list.

You can also delete a remote branch by using the matching Delete Remote Branch action.

Merge and publish branches

When your feature is complete, merge it back into the main branch:

1. Switch to the target branch (usually main or develop).
2. Run Git: Merge Branch from the Command Palette.
3. Select the branch to merge.

To publish a branch to your remote repository, use the Publish Branch action.

VS Code shows the merge result in the Source Control view. If there are conflicts, VS Code highlights them and provides tools to resolve them. Learn more about resolving merge conflicts.

Working with Git worktrees

VS Code has built-in support for Git worktrees, making it easy to manage and work with multiple branches at the same time.

Understanding worktrees

A worktree is a separate checkout of a Git branch in its own directory. This allows you to have multiple working directories for the same repository, each on a different branch. Worktree functionality is especially useful for:

• Work on multiple features simultaneously in separate folders
• Run different versions of your application side by side
• Compare implementations across branches

Create a worktree

To create a new worktree in VS Code:

1. Open the Source Control Repositories view from the Source Control view.

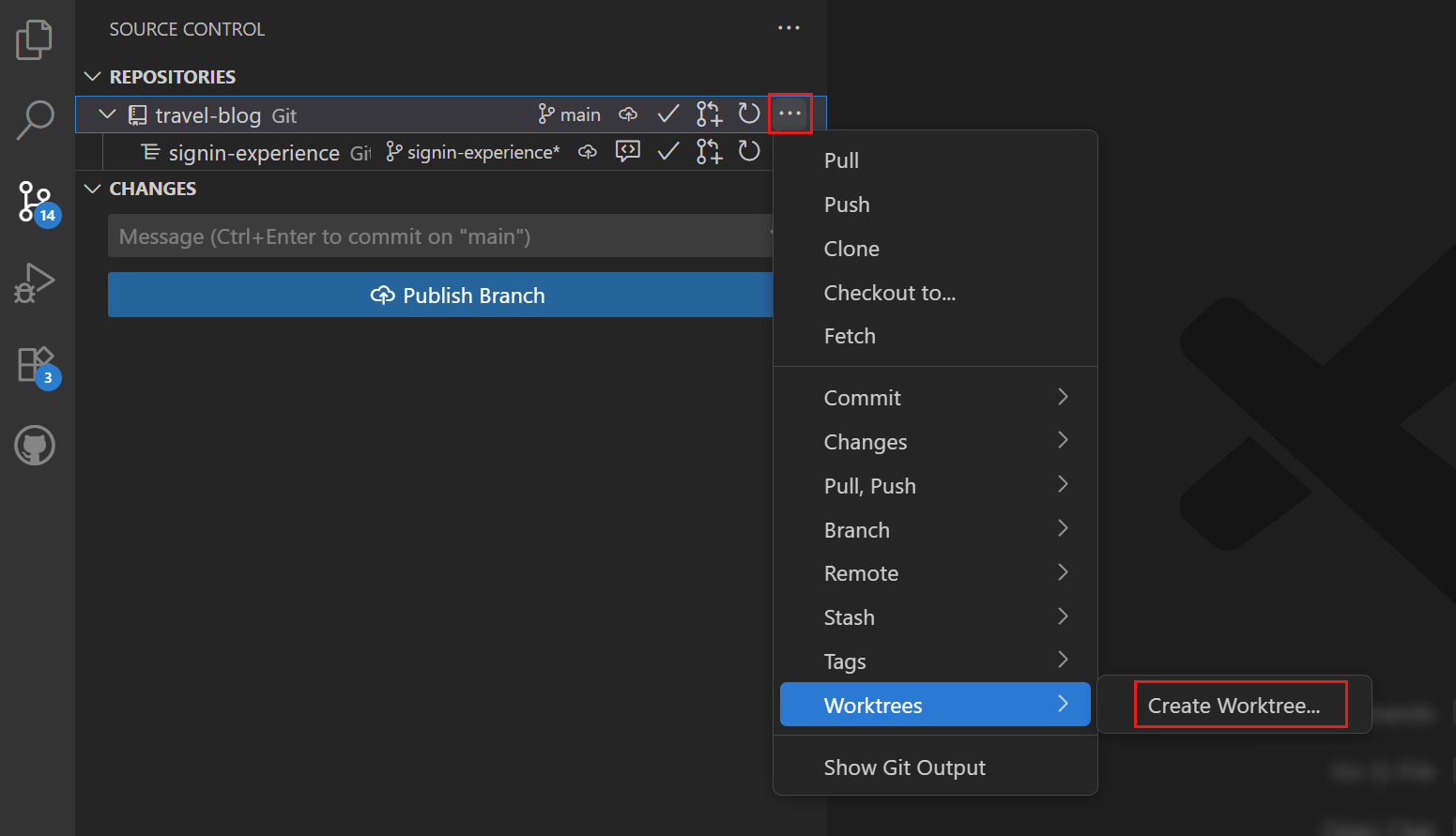

2. Right-click on your repository and select Worktree > Create Worktree.



3. Follow the prompts to choose a branch and location for the new worktree.

   VS Code creates a new folder for the worktree at the specified location and checks out the selected branch into that folder.

The new worktree appears as a separate entry in the Source Control Repositories view.

Switch between worktrees

VS Code can display multiple repositories (including worktrees) simultaneously:

• Each worktree appears as a separate repository in the Source Control Repositories view
• You can open multiple VS Code windows, each pointing to a different worktree
• Use File > Open Recent to quickly switch between worktree directories

Open a worktree

There are multiple ways to open a worktree:

• Directly open the folder associated with the worktree in VS Code. VS Code automatically detects that it's a worktree of an existing repository.

• Right-click the worktree in the Source Control Repositories view and select Open Worktree in New Window or Open Worktree in Current Window.

• Run the Git: Open Worktree in Current Window or Git: Open Worktree in New Window command in the Command Palette and select the desired worktree.

Compare and migrate changes from a worktree

When you make changes in a worktree, you can compare those changes with your main workspace and bring worktree changes back into your main repository.

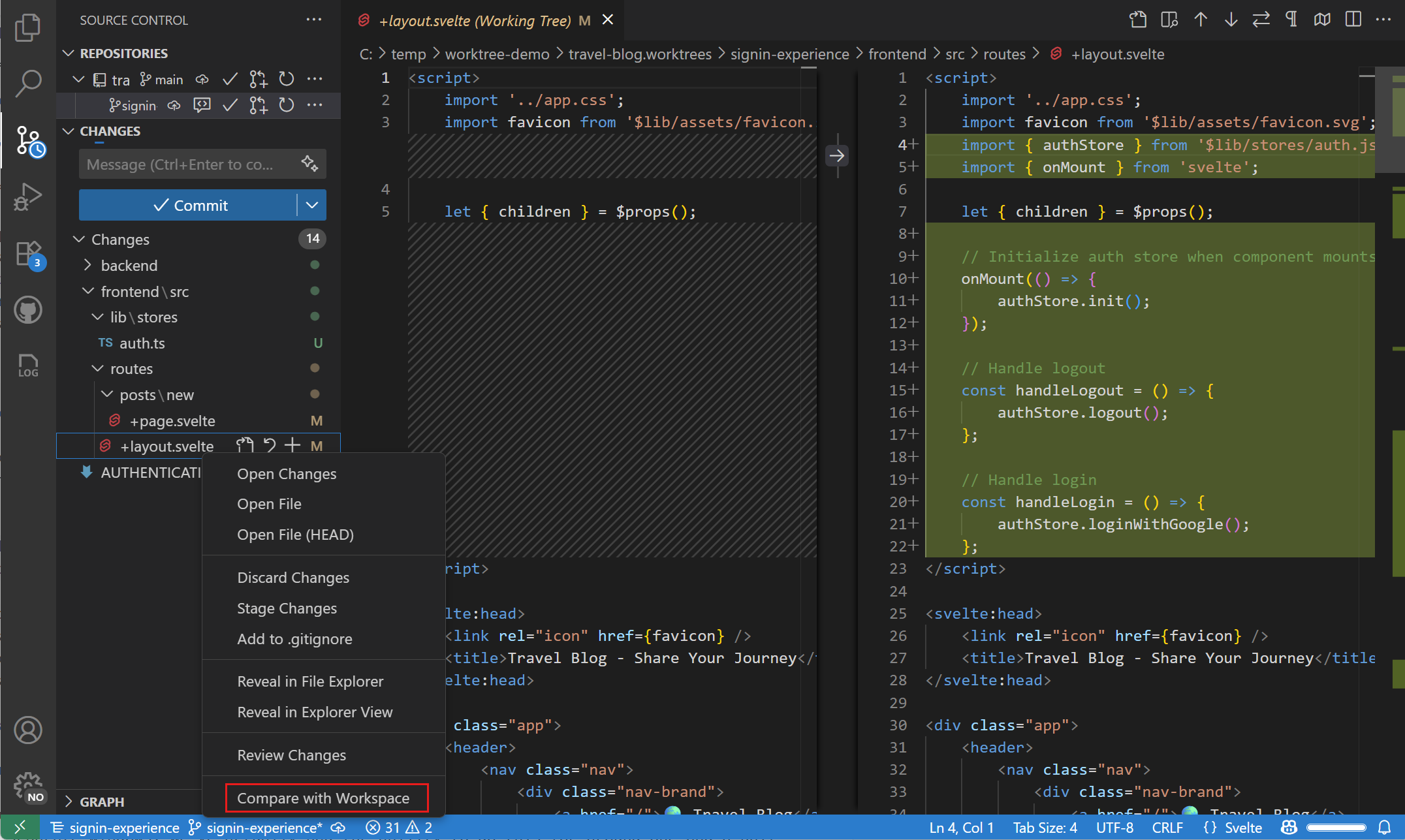

1. In the Source Control view, right-click a changed file in the worktree and select Compare with Workspace to see the differences side-by-side.



2. After reviewing, use the Migrate Worktree Changes command from the Command Palette to merge all changes from a worktree into your current workspace.

Next steps

• Staging and Committing - Learn about committing changes within branches
• Merge Conflicts - Handle conflicts when merging branches
• Repositories and Remotes - Work with remote branches and collaboration
• Collaborate on GitHub - Use GitHub pull requests with your branch workflow
