Terminal Shell Integration

Visual Studio Code has the ability to integrate with common shells, allowing the terminal to understand more about what's actually happening inside the shell. This additional information enables some useful features such as working directory detection and command detection, decorations, and navigation.

Supported shells:

  • Linux/macOS: bash, fish, pwsh, zsh
  • Windows: pwsh

Installation

Automatic script injection

By default, the shell integration script should automatically activate on supported shells launched from VS Code. This is done by injecting arguments and/or environment variables when the shell session launches. This automatic injection can be disabled by setting terminal.integrated.shellIntegration.enabled to false.

This standard, easy way will not work for some advanced use cases like in sub-shells, through a regular ssh session (when not using the Remote - SSH extension) or for some complex shell setups. The recommended way to enable shell integration for those is manual installation.

Note: Automatic injection may not work on old versions of the shell, for example older versions of fish do not support the $XDG_DATA_DIRS environment variable which is how injection works. You may still be able to manually install to get it working.

Manual installation

To manually install shell integration, the VS Code shell integration script needs to run during your shell's initialization. Where and how to do this depends on the shell and OS you're using. When using manual install it's recommended to set terminal.integrated.shellIntegration.enabled to false, though not mandatory.

Tip: When using the Insiders build, replace code with code-insiders below.

bash

Add the following to your ~/.bashrc file. Run code ~/.bashrc in bash to open the file in VS Code.

[[ "$TERM_PROGRAM" == "vscode" ]] && . "$(code --locate-shell-integration-path bash)"

fish

Add the following to your config.fish. Run code $__fish_config_dir/config.fish in fish to open the file in VS Code.

string match -q "$TERM_PROGRAM" "vscode"
and . (code --locate-shell-integration-path fish)

pwsh

Add the following to your PowerShell profile. Run code $Profile in pwsh to open the file in VS Code.

if ($env:TERM_PROGRAM -eq "vscode") { . "$(code --locate-shell-integration-path pwsh)" }

zsh

Add the following to your ~/.zshrc file. Run code ~/.zshrc in bash to open the file in VS Code.

[[ "$TERM_PROGRAM" == "vscode" ]] && . "$(code --locate-shell-integration-path zsh)"

Git Bash

Add the following to your ~/.bashrc file. Run code ~/.bashrc in Git Bash to open the file in VS Code.

[[ "$TERM_PROGRAM" == "vscode" ]] && . "$(code --locate-shell-integration-path bash)"

Portability versus performance

The above shell integration installation is cross-platform and compatible with any installation type if code is in the $PATH. However, this recommended approach starts Node.js to fetch the script path, leading to a slight delay in shell startup. To mitigate this delay, inline the script above by resolving the path ahead of time and adding it directly into your init script.

# Output the executable's path first:
code --locate-shell-integration-path bash

# Add the result of the above to the source statement:
[[ "$TERM_PROGRAM" == "vscode" ]] && . "/path/to/shell/integration/script.sh"

Command decorations and the overview ruler

One of the things that shell integration enables is the ability to get the exit codes of the commands run within the terminal. Using this information, decorations are added to the left of the line to indicate whether the command succeeded or failed. These decorations also show up in the relatively new overview ruler in the scroll bar, just like in the editor.

Blue circles appear next to successful commands, red circles with crosses appear next to failed commands. The color of the circles appears in the scroll bar

The decorations can be interacted with to give some contextual actions like re-running the command:

Clicking a successful command decoration shows a context menu containing items: Copy Output, Copy Output as HTML, Rerun Command and How does this work?

The command and overview ruler decorations can be configured with the terminal.integrated.shellIntegration.decorationsEnabled setting.

Command navigation

The commands detected by shell integration feed into the command navigation feature (Ctrl/Cmd+Up, Ctrl/Cmd+Down) to give it more reliable command positions. This feature allows for quick navigation between commands and selection of their output. To select from the current position to the command, you can also hold down Shift, pressing Shift+Ctrl/Cmd+Up and Shift+Ctrl/Cmd+Down.

Command guide

The command guide is a bar that shows up beside a command and its output when hovered. This helps more quickly identify the command and also is a way to verify that shell integration is working properly.

Screenshot of the terminal, highlighting the command guide vertical bar on the left-hand side to indicate the boundary of a command.

You can customize the color of the command guide by using Color Themes. To toggle the command guide, configure the terminal.integrated.shellIntegration.showCommandGuide setting.

Sticky scroll

The sticky scroll feature will "stick" the command that is partially showing at the top of the terminal, making it much easier to see what command that output belongs to. Clicking on the sticky scroll component will scroll to the command's location in the terminal buffer.

Sticky scroll will show the command at the top of the terminal viewport

This can be enabled with the terminal.integrated.stickyScroll.enabled setting.

Quick fixes

VS Code scans the output of a command and presents a Quick Fix with actions that have a high likelihood of being what the user will want to do next.

Running 'git push --set-upstream' will present a lightbulb that opens a dropdown with an option to open a new PR on github.com

Here are some of the built-in Quick Fixes:

  • When it's detected that a port is already being listened to, suggest to kill the process and re-run the previous command.
  • When git push fails due to an upstream not being set, suggest to push with the upstream set.
  • When a git subcommand fails with a similar command error, suggest to use the similar command(s).
  • When git push results in a suggestion to create a GitHub PR, suggest to open the link.
  • When a General or cmd-not-found PowerShell feedback provider triggers, suggest each suggestion.

The Quick Fix feature also supports accessibility signals for additional feedback when a Quick Fix is available.

Run recent command

The Terminal: Run Recent Command command surfaces history from various sources in a Quick Pick, providing similar functionality to a shell's reverse search (Ctrl+R). The sources are the current session's history, previous session history for this shell type and the common shell history file.

The "run recent command" command shows a quick pick with previously run commands that can be filtered similar to the go to file command

Some other functionality of the command:

  • By default the search mode is "contiguous search", meaning the search term must exactly match. The button on the right of the search input allows switching to fuzzy search.
  • In the current session section, there is a clipboard icon in the right of the Quick Pick that will open the command output in an editor.
  • The pin action in the right of the Quick Pick can pin the command to the top of the list.
  • Alt can be held to write the text to the terminal without running it.
  • The amount of history stored in the previous session section is determined by the terminal.integrated.shellIntegration.history setting.

The default keybinding for this command is Ctrl+Alt+R. However, when accessibility mode is on these are reversed; Ctrl+R runs a recent command and Ctrl+Alt+R sends Ctrl+R to the shell.

The keybindings can be flipped when accessibility mode is off with the following keybindings:

{
    "key": "ctrl+r",
    "command": "workbench.action.terminal.runRecentCommand",
    "when": "terminalFocus"
},
{
  "key": "ctrl+alt+r",
  "command": "workbench.action.terminal.sendSequence",
  "args": { "text": "\u0012"/*^R*/ },
  "when": "terminalFocus"
}

Go to recent directory

Similar to the run recent command feature, the Terminal: Go to Recent Directory command keeps track of directories that have been visited and allows quick filtering and navigating (cd) to them. Alt can be held to write the text to the terminal without running it.

The default keybinding for this command is ⌘G (Windows, Linux Ctrl+G) as it behaves similar to the Go to Line/Column command in the editor. Ctrl+G can be send to the shell with Ctrl+Alt+G.

Current working directory detection

Shell integration tells VS Code what the current working directory of the shell is. This information is not possible to get on Windows without trying to detect the prompt through regex and requires polling on macOS and Linux, which isn't good for performance.

One of the biggest features this enables is enhanced resolving of links in the terminal. Take a link package.json for example, when the link is activated while shell integration is disabled this will open a search quick pick with package.json as the filter if there are multiple package.json files in the workspace. When shell integration is enabled however, it will open the package.json file in the current folder directly because the current location is known. This allows the output of ls for example to reliably open the correct file.

The current working directory is also used to show the directory in the terminal tab, in the run recent command quick pick and for the "terminal.integrated.splitCwd": "inherited" feature.

Extended PowerShell keybindings

Windows' console API allows for more keybindings than Linux/macOS terminals, since VS Code's terminal emulates the latter even on Windows there are some PowerShell keybindings that aren't possible using the standard means due to lack of VT encoding such as Ctrl+Space. Shell integration allows VS Code to attach a custom keybindings to send a special sequence to PowerShell that then gets handled in the shell integration script and forwarded to the proper key handler.

The following keybindings should work in PowerShell when shell integration is enabled:

  • Ctrl+Space: Defaults to MenuComplete on Windows only
  • Alt+Space: Defaults to SetMark on all platforms
  • Shift+Enter: Defaults to AddLine on all platforms
  • Shift+End: Defaults to SelectLine on all platforms
  • Shift+Home: Defaults to SelectBackwardsLine on all platforms

Experimental IntelliSense for PowerShell

Experimental IntelliSense for PowerShell shows a completion list when typing in PowerShell, similar to the editor experience. Behind the scenes, this functionality is powered by the PowerShell session's native completion API, so context-aware completions like variables are available.

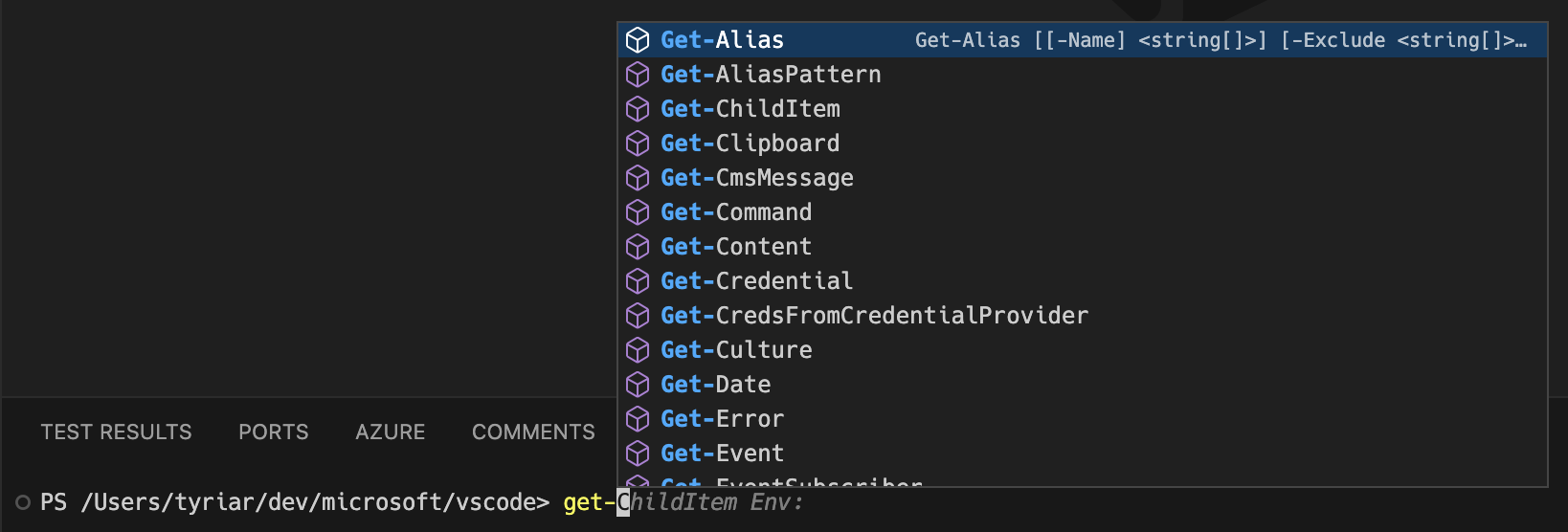

PowerShell IntelliSense shows completions like Get-Alias, Get-ChildItem, for example when typing Get-

You can enable the experimental IntelliSense for PowerShell with the terminal.integrated.suggest.enabled setting.

"terminal.integrated.suggest.enabled": true

Note: This functionality is currently only available on Windows and macOS.

Git and VS Code completions

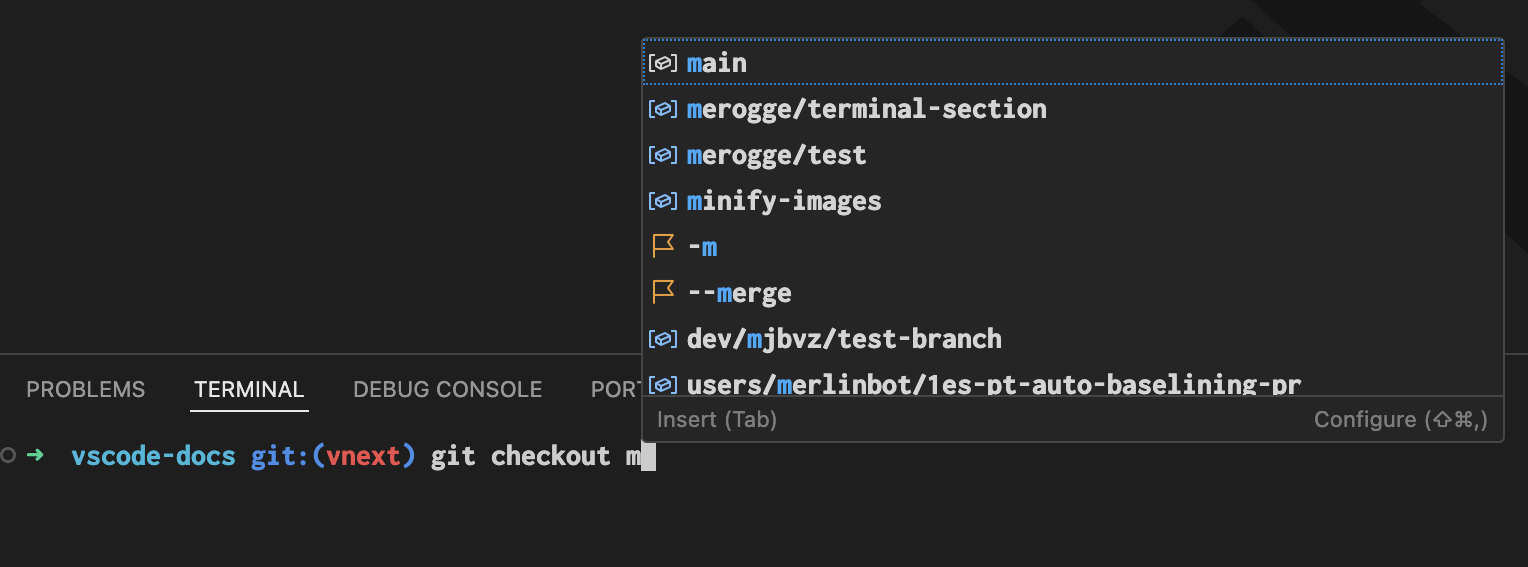

When experimental IntelliSense is enabled, completions for CLIs git, code, and code-insiders are turned on by default. If your PowerShell profile already has completions, you may want to turn these off by using the terminal.integrated.suggest.builtinCompletions setting.

Enhanced accessibility

The information that shell integration provides to VS Code is used to improve accessibility in the terminal. Some examples of enhancements are:

  • Navigation through detected commands in the accessible buffer (⌥F2 (Windows Alt+F2, Linux Shift+Alt+F2))
  • An audio cue plays when a command fails.
  • Underlying text box synchronizing such that using the arrow and backspace keys behave more correctly.

Supported escape sequences

VS Code supports several custom escape sequences:

VS Code custom sequences 'OSC 633 ; ... ST'

VS Code has a set of custom escape sequences designed to enable the shell integration feature when run in VS Code's terminal. These are used by the built-in scripts but can also be used by any application capable of sending sequences to the terminal, for example the Julia extension uses these to support shell integration in the Julia REPL.

These sequences should be ignored by other terminals, but unless other terminals end up adopting the sequences more widely, it's recommended to check that $TERM_PROGRAM is vscode before writing them.

  • OSC 633 ; A ST - Mark prompt start.

  • OSC 633 ; B ST - Mark prompt end.

  • OSC 633 ; C ST - Mark pre-execution.

  • OSC 633 ; D [; <exitcode>] ST - Mark execution finished with an optional exit code.

  • OSC 633 ; E ; <commandline> [; <nonce] ST - Explicitly set the command line with an optional nonce.

    The E sequence allows the terminal to reliably get the exact command line interpreted by the shell. When this is not specified, the terminal may fallback to using the A, B and C sequences to get the command, or disable the detection all together if it's unreliable.

    The optional nonce can be used to verify the sequence came from the shell integration script to prevent command spoofing. When the nonce is verified successfully, some protections before using the commands will be removed for an improved user experience.

    The command line can escape ASCII characters using the \xAB format, where AB are the hexadecimal representation of the character code (case insensitive), and escape the \ character using \\. It's required to escape semi-colon (0x3b) and characters 0x20 and below and this is particularly important for new line and semi-colon.

    Some examples:

    "\"  -> "\\"
    "\n" -> "\x0a"
    ";"  -> "\x3b"

  • OSC 633 ; P ; <Property>=<Value> ST - Set a property on the terminal, only known properties will be handled.

    Known properties:

    • Cwd - Reports the current working directory to the terminal.
    • IsWindows - Indicates whether the terminal is using a Windows backend like winpty or conpty. This may be used to enable additional heuristics as the positioning of the shell integration sequences are not guaranteed to be correct. Valid values are True and False.

Final Term shell integration

VS Code supports Final Term's shell integration sequences, which allow non-VS Code shell integration scripts to work in VS Code. This results in a somewhat degraded experience as it doesn't support as many features as OSC 633. Here are the specific sequences that are supported:

  • OSC 133 ; A ST - Mark prompt start.
  • OSC 133 ; B ST - Mark prompt end.
  • OSC 133 ; C ST - Mark pre-execution.
  • OSC 133 ; D [; <exitcode>] ST - Mark execution finished with an optional exit code.

iTerm2 shell integration

The following sequences that iTerm2 pioneered are supported:

  • OSC 1337 ; CurrentDir=<Cwd> S - Sets the current working directory of the terminal, similar to OSC 633 ; P ; Cwd=<Cwd> ST.

  • OSC 1337 ; SetMark ST - Adds a mark to the left of the line it was triggered on and also adds an annotation to the scroll bar:

    When the sequence is written to the terminal a small grey circle will appear to the left of the command, with a matching annotation in the scroll bar

    These marks integrate with command navigation to make them easy to navigate to via ⌘↑ (Windows, Linux Ctrl+Up) and ⌘↓ (Windows, Linux Ctrl+Down).

Common questions

When does automatic injection not work?

There are several cases where automatic injection doesn't work, here are some common cases:

  • $PROMPT_COMMAND is in an unsupported format, changing it to point to a single function is an easy way to work around this. For example:

    prompt() {
      printf "\033]0;%s@%s:%s\007" "${USER}" "${HOSTNAME%%.*}" "${PWD/#$HOME/\~}"
    }
    PROMPT_COMMAND=prompt

  • Some shell plugins may disable VS Code's shell integration explicitly by unsetting $VSCODE_SHELL_INTEGRATION when they initialize.

Why are command decorations showing when the feature is disabled?

The likely cause of this is that your system has shell integration for another terminal installed that VS Code understands. If you don't want any decorations, you can hide them with the following setting:

"terminal.integrated.shellIntegration.decorationsEnabled": never

Alternatively, you could remove the shell integration script from your shell rc/startup script but you will lose access to command-aware features like command navigation.

Why does the command decoration jump around on Windows?

Windows uses an emulated pseudoterminal (pty) backend called ConPTY. It works a little differently to a regular pty because it needs to maintain compatibility with the Windows Console API. One of the impacts of this is the pty handles rendering specially in such a way that the shell integration sequences that identify the commands in the terminal buffer may be misplaced. When the command jumps around it's typically after a command has run, and VS Code's heuristics have kicked in to improve the position of the command decorations.
